Membrane presses

Our range of membrane filter presses has plate pack sizes 470, 630, 800, 1000, 1200 and 1500mm square. The membrane plate is a technological development of the standard recessed plate. In our presses, every plate or every other plate has a flexible face that covers both sides of the plate.

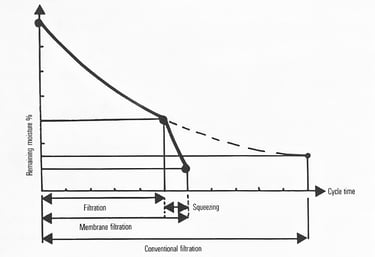

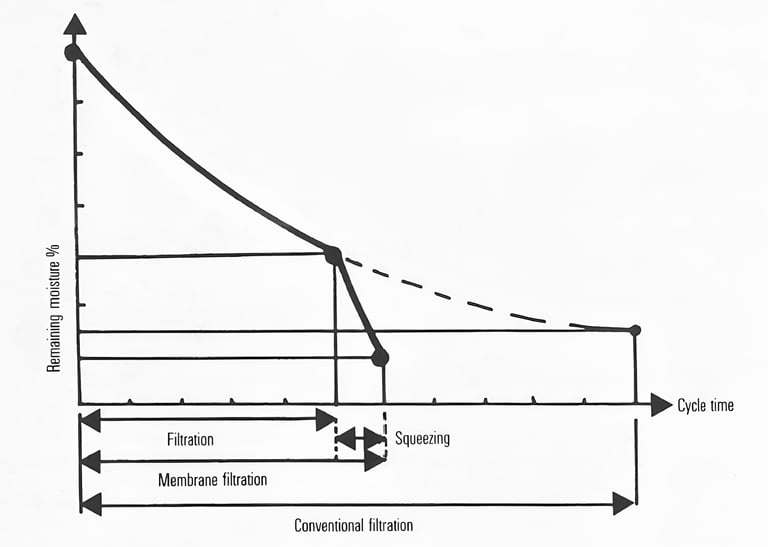

The fundamental principle of membrane operation realises that approximately 75 - 80% of the product to be filtered passes through the filter press in the first third of the cycle time. At this point, in each chamber two "half" cakes have been built up. Press feeding is stopped, and the flexible membrane outer surfaces are inflated by applying compressed air pressure (or water) behind the membrane surfaces. The two halves of cake in each chamber are then squeezed together under pressure, forming a single cake of a very homogenous consistency.

250mm Filter Press

Learn more

250mm Filter Press

470mm Filter Press

630mm Filter Press

Learn more

Membrane Presses

Our range of membrane filter presses has plate pack sizes 470, 630, 800, 1000, 1200 and 1500mm square. The membrane plate is a technological development of the standard recessed plate. In our presses, every plate or every other plate has a flexible face that covers both sides of the plate.

The fundamental principle of membrane operation realises that approximately 75 - 80% of the product to be filtered passes through the filter press in the first third of the cycle time. At this point, in each chamber two "half" cakes have been built up. Press feeding is stopped, and the flexible membrane outer surfaces are inflated by applying compressed air pressure (or water) behind the membrane surfaces. The two halves of cake in each chamber are then squeezed together under pressure, forming a single cake of a very homogenous consistency.

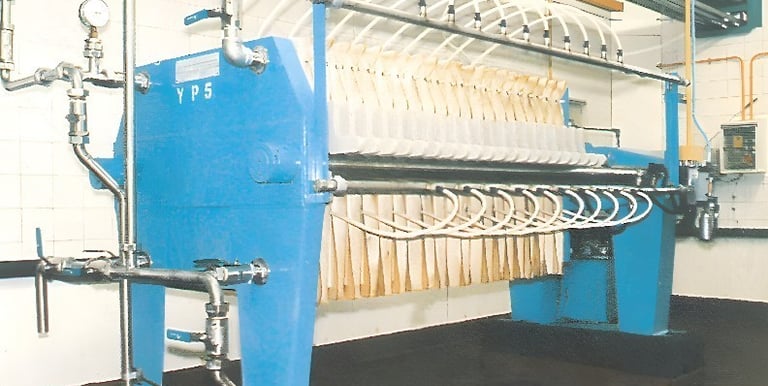

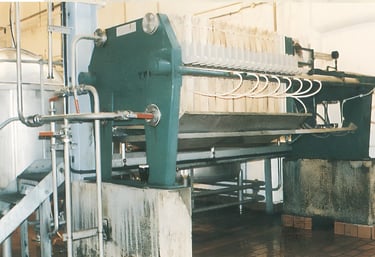

800mm square, recessed membrane plate filter press used for filtration of fermenting vessel bottoms on a brewery installation.

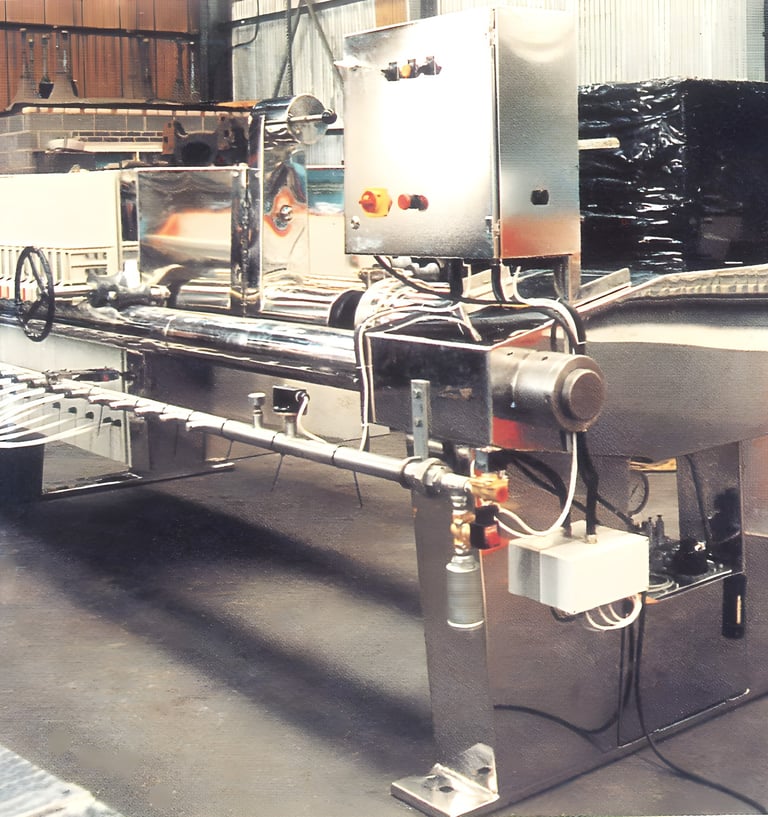

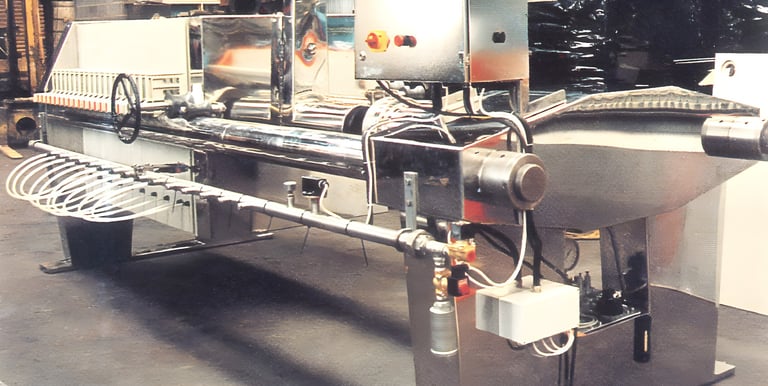

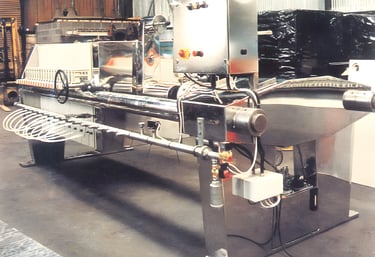

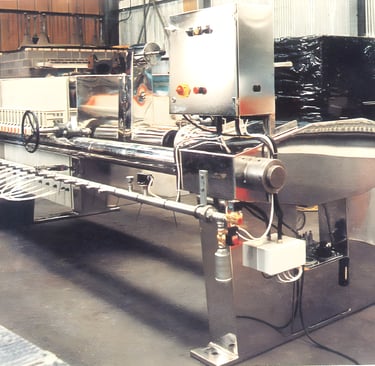

Membrane filter press 800mm square with double acting hydraulic opening, closing and sealing in stainless steel clad.

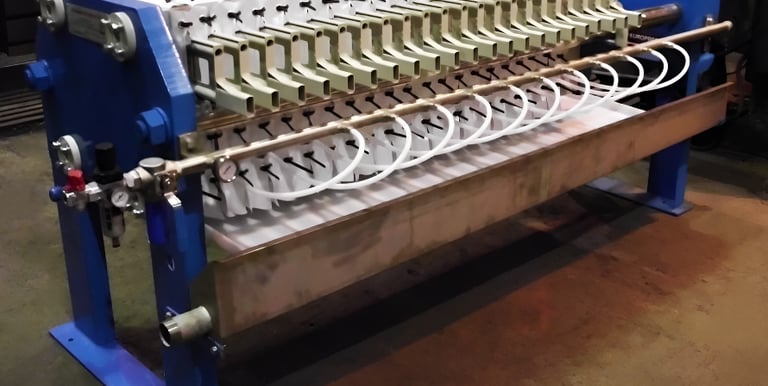

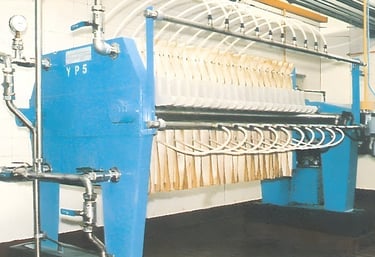

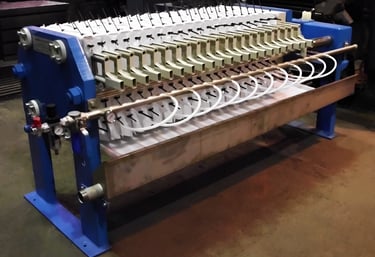

Membrane filter press 800mm square with double acting hydraulic opening, closing and sealing in standard finish.

Write a short text about your service. Highlight key benefits for potential clients.

Benefits

Increased product throughput;
Reduction of the residual moisture of the filter cake;
Filtration, wash and cake cycles shorter;
Cake air blasting can be omitted;
Drier cakes mean energy saving on cake drying and transportation;
The optimised cake structure facilities quicker and better washing results;
Varying product quantities and compositions present no problems to the membrane filter press, irrespective of chamber depth, a cake will always be formed.

Johnson Progress & Lenser

Johnson Progress has collaborated closely with Lenser for many years, fostering a strong and trusting relationship. This partnership has enabled them to combine their expertise and resources to produce high-quality filter presses, utilising Lenser's advanced plate technology. The shared commitment to excellence and innovation has ensured that their products meet the rigorous demands of various industries.

More

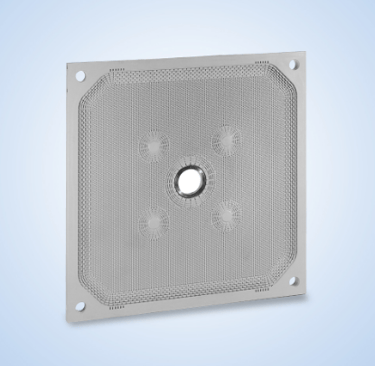

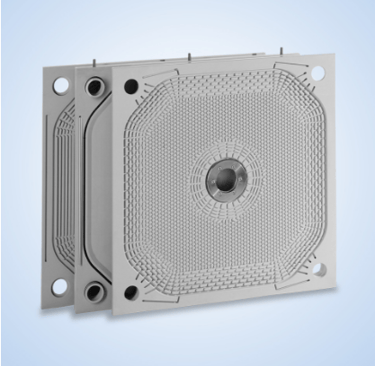

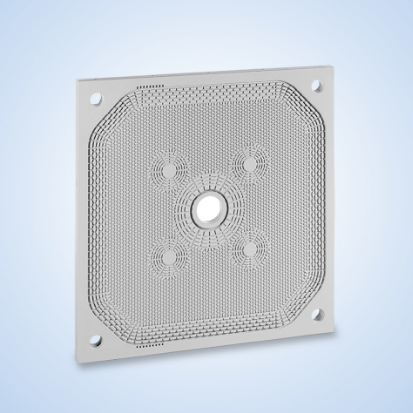

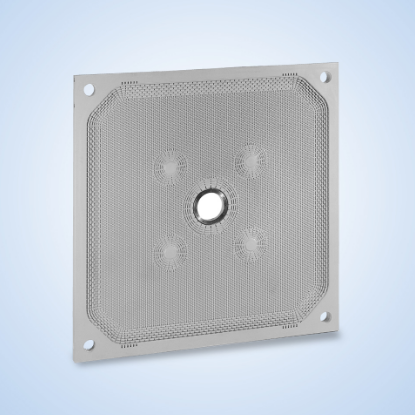

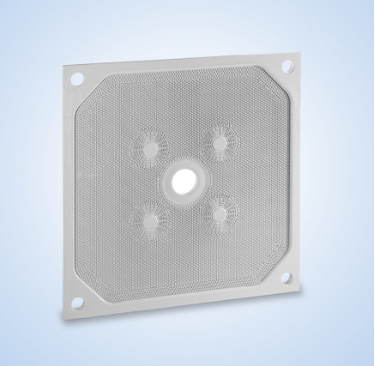

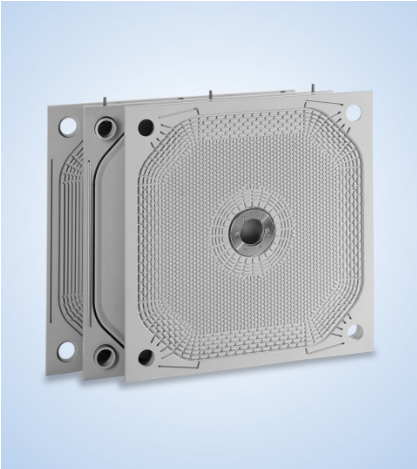

Membrane plates

Membrane filter press plates, made from durable materials, enable effective filtration by applying pressure to the filter cake, which maximizes liquid extraction from the solids. The membrane technology facilitates additional cake squeezing, producing drier solids and improved products. These plates are available in various sizes and configurations, allowing customization to meet different operational requirements and filter types. Their versatility makes them suitable for wastewater treatment, food and beverage production, and mineral processing applications. With advancements in design, these plates also ensure quick and easy maintenance while promoting sustainable practices by reducing waste and energy consumption during solid-liquid separation. Overall, membrane filter press plates are essential for enhancing the performance of filtration processes across various sectors.
